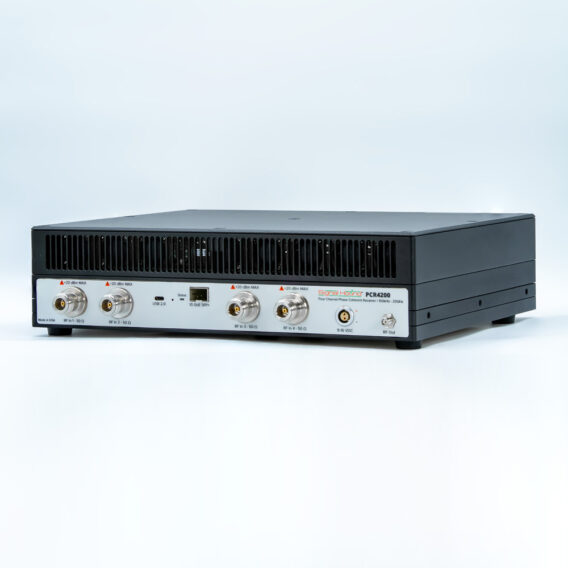

PCR4200 Four-Channel Phase Coherent Receiver

Each channel on the PCR4200 may be configured as a phase coherent channel using the high-performance shared local oscillator (LO), or independently tuned using that channel’s dedicated LO. Additionally, any single channel may be configured to provide swept spectrum data at up to 200 GHz/s. Other features include a built-in 30 MHz to 20 GHz vector signal generator to simplify system alignment and calibration, and an internal GPS to provide precise time, frequency, and location.

Read This! See what EverythingRF had to say about the debut this powerful new product from Signal Hound HERE.

• Frequency range 100 kHz to 20 Ghz
• Streams 40 MHz bandwidth per channel over 10 GbE SFP+
• Built-in sub-octave preselectors from 45 MHz to 20 GHz
• Noise figure: 10 dB typical at 2 GHz
• Calibrated I/Q data
• Ultra-low phase noise: -136 dBc/Hz 10 kHz offset from 1 GHz center frequency
• Internal GPS
• 110 dB dynamic range
• Independent channel configuration
• Up to 16 phase coherent channels

Applications:

• Simultaneous multi-band spectrum monitoring
• Emitter detection and geolocation
• Multi-channel transmitter testing
• SIGINT/COMINT/ELINT
• Drone detection
• MIMO channel testing

The PCR4200 excels at multi-channel, wide-band, simultaneous monitoring applications. It utilizes exceptionally fast sweep speeds, outstanding dynamic range and ultra-low phase noise to ensure sweeps, data and accuracy are all of the highest quality. Independent channel configuration enables flexibility in diverse signal environments. Reliability, accuracy and a portable form factor make the PCR4200 well suited to multi-channel receiver needs across a diverse range of scenarios.
