Item is in stock

Calibration type *

All Signal Hound devices are calibrated to better-than-box specs during production. However, if you require a signed calibration certificate with a printed packet of calibration data, you will need to select it below:

Warranty length *

Our standard warranty is for a 2-year time period. An extended warranty is available up to a total of five years (2-year warranty plus 3 additional years). Extended warranties are calculated at 6% of the product cost, per year.

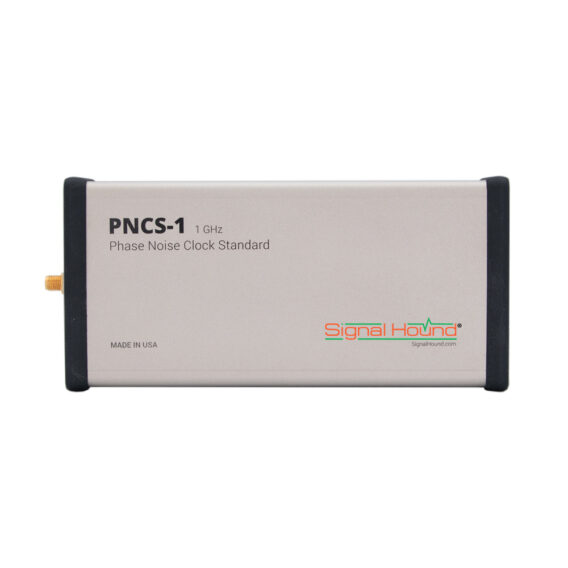

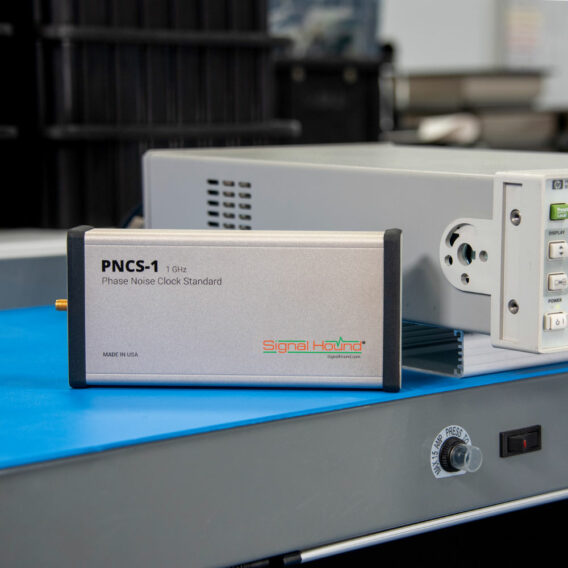

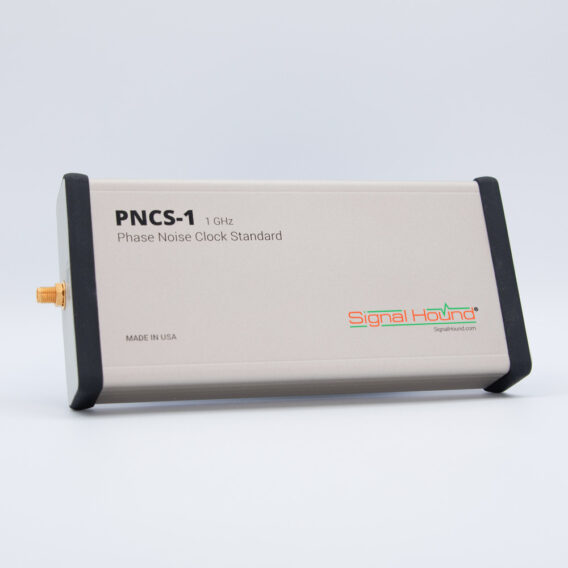

The PNCS-1 Phase Noise Clock Standard provides an ultra-clean phase noise 1GHz sinewave that can be used as a phase noise reference standard for testing spectrum analyzer phase noise performance.

The PNCS-1 is also well suited for use as a system clock for ADC’s and DAC’s, reducing unwanted system-created spurious signals, and thus achieving the best possible system performance from the ADC or DAC. The PNCS-1 can save a system engineer time during product development when working with high performance ADC’s or DAC’s. By being a clean, ready 1GHz clock source, the PNCS-1 allows the engineer to achieve advertised performance from the ADC’s or DAC’s they are designing into a new circuit or product.

Reviews

There are no reviews yet.

Be the first to review “PNCS-1 Phase Noise Clock Standard”

Your email address will not be published. Required fields are marked *

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Device dimensions

Version

Weight.56 lbs (.26 kg)
Dimensions6.95" x 3.18" x 1.18" (17.5 x 8 x 3 cm)

Product-in-packaging dimensions

Version

Weight1.84 lbs (.83 kg)
Dimensions
