Warranty length *

Our standard warranty is for a 2-year time period. An extended warranty is available up to a total of five years (2-year warranty plus 3 additional years). Extended warranties are calculated at 6% of the product cost, per year.

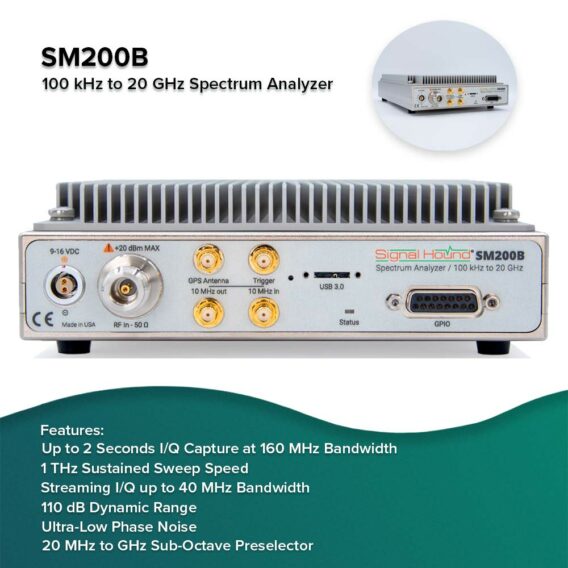

The SM200B is a high-performance spectrum analyzer and monitoring receiver. Tuning from 100 kHz to 20GHz, the analyzer has 160 MHz of instantaneous bandwidth (IBW), 110 dB of dynamic range, 1THz/sec sweep speed at 30kHz RBW (using Nuttall windowing), and phase noise performance that is low enough to contribute less than 0.1% error to EVM measurements and rival even the most expensive spectrum analyzers on the market.

The SM200B offers 160 MHz instantaneous bandwidth (IBW) calibrated I/Q capture, available through block transfer of a 2-second I/Q buffer over USB 3.0 to the PC (learn more about this feature).

Signal processing is distributed between a very powerful Altera FPGA and an external PC having an Intel Core i5 processor. The Signal Hound SM200B can be readily interfaced, using its local API, to an automated monitoring system or to automated test equipment. The SM200B API provides customers the access needed to insert their own DSP algorithms into a calibrated stream of I/Q data.

FREQUENCY
• Range: 100 kHz to 20.0 GHz
• RF Input Impedance (type-N connector): 50Ω
• Calibrated Streaming I/Q: 5 kHz to 40 MHz of selectable I/Q bandwidth
• Includes an internal GPS, used for timebase synchronization, I/Q timestamping, and GPS positioning
• Resolution Bandwidths (RBW): 0.1 Hz (≤200kHz span) to 3 MHz (any span) using 40 MHz IBW; 30 kHz to 10 MHz using 160 MHz IBW
• Timebase Accuracy: GPS disciplined OCXO remains within ±5 x 10-10 when locked to GPS;
– holdover of ±5 x 10-9 per day for aging;
– holdover of ±1 x 10-8 for temperature over -40°C to 60°C

SYSTEM NOISE FIGURE (typical)
13 dB from 700 MHz to 2.7 GHz;
16 dB from 2.7 GHz to 4.5 GHz;
19 dB from 4.5 GHz to 15.2 GHz

IP2
+68 dBm from 100 kHz to 2 GHz;
+78 dBm from 2 GHz to 10 GHz;
+75 dBm from 10 GHz to 15 GHz;
+60 dBm from 15 GHz to 20 GHz

IP3
+28 dBm from 100 kHz to 3 GHz;
+24 dBm from 3 GHz to 6 GHz;
+20 dBm from 6 GHz to 20 GHz

…get ALL the details in the data sheet: SM200B Data Sheet

2 reviews for SM200B — 20 GHz Real-time Spectrum Analyzer

  1. Avatar

    Jonathan deWerd

    Hell yeah! Just bought one of these bad boys and it TEARS through the GHz like an ABSOLUTE UNIT!

  2. Avatar

    Vatha Soxujwa

    Awesome product. Best Value for money.

Add a review

Your email address will not be published. Required fields are marked *

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Device dimensions

Version

SM200B — 20 GHz Real-time Spectrum Analyzer - Standard, Temperature Range: 0°C to +50°C

Weight7.77 lbs (3.52 kg)
Dimensions10.2" x 7.2" x 2.15" (25.9 x 18.3 x 5.5 cm)
Version

SM200B — 20 GHz Real-time Spectrum Analyzer - Option 1, Temperature Range: -40°C to +65°C

Weight9.13 lbs. (4.14 kg)
Dimensions10.2” x 7.2” x 2.80” (25.9 x 18.3 x 7.11 cm)

Product-in-packaging dimensions

Version

SM200B — 20 GHz Real-time Spectrum Analyzer - Standard, Temperature Range: 0°C to +50°C

Weight12.50 lbs. (5.67 kg)
Dimensions16.5" x 11" x 8.44" (41.9 x 27.9 x 21.44 cm)
Version

SM200B — 20 GHz Real-time Spectrum Analyzer - Option 1, Temperature Range: -40°C to +65°C

Weight13.66 lbs (6.20 kg)
Dimensions16.5" x 11" x 8.44" (41.9 x 27.9 x 21.44 cm)

Software and Drivers

Spike Software

  • Spectrum analysis software for all Signal Hound spectrum analyzers.
  • Installs the necessary USB drivers for the SM200 and SM435 devices.

Signal Hound Software Development Kit

  • Read API Docs
  • Includes programming interface for SM200 and SM435 devices.
  • Low level direct device control and measurements.
  • 64/32-bit Windows and 64-bit Linux operating systems.

Manuals

All manuals are included with the Spike software installer. For direct manual links see below.

SM200 and SM435 Product Manual

10GbE Network Configuration Guide

Firmware

Firmware updater for all models of the SM200 and SM435. You can see the current firmware version of your device in the Spike status bar.

Read the release_notes before updating the firmware on your device.

Firmware Updater (9/2/2022)

SM200 STEP File Downloads

3D model files (CAD) of the exterior of the SM200A, B, and C, in the Standard for the Exchange of Product Data (STEP) format. Perfect for those needing the physical specs of the SM200-series devices for system integration purposes.

SM200C STEP Files

SM200A/B STEP Files

SM435 STEP File Downloads

3D model files (CAD) of the exterior of the SM435B and SM435C, in the Standard for the Exchange of Product Data (STEP) format. Perfect for those needing the physical specs of the SM435-series devices for system integration purposes.

SM435B STEP Files

SM435C STEP Files
