Our standard warranty is for a 2-year time period. An extended warranty is available up to a total of five years (2-year warranty plus 3 additional years). Extended warranties are calculated at 6% of the product cost, per year.

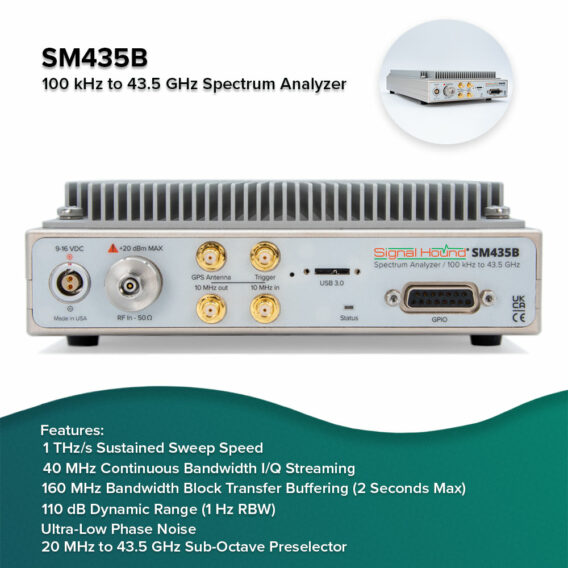

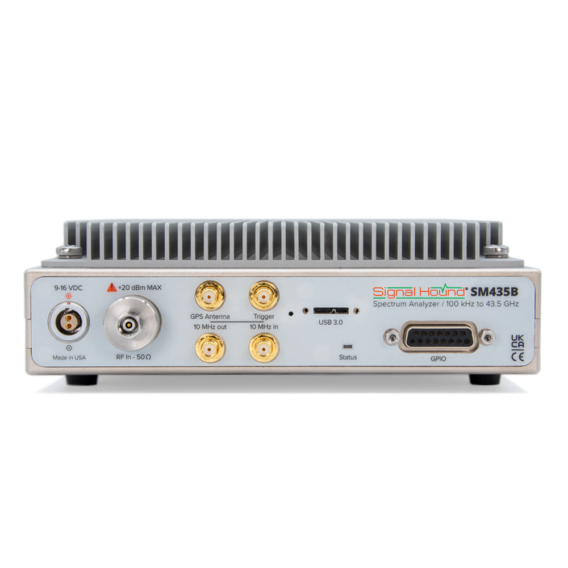

The SM435B is a high-performance spectrum analyzer and monitoring receiver. Tuning from 100 kHz to 43.5 GHz, the analyzer has 160 MHz of instantaneous bandwidth (IBW), 110 dB of dynamic range, 1THz/sec sweep speed at 30kHz RBW (using Nuttall windowing), and phase noise performance that is low enough to contribute less than 0.1% error to EVM measurements and rival even the most expensive spectrum analyzers on the market.

The SM435B offers 160 MHz instantaneous bandwidth (IBW) calibrated I/Q capture, available through block transfer of a 2-second I/Q buffer over USB 3.0 to the PC (learn more about this feature).

Signal processing is distributed between a very powerful Intel FPGA and an external PC having an Intel Core i7 processor. The Signal Hound SM435B can be readily interfaced, using its local API, to an automated monitoring system or to automated test equipment. The SM435B API provides customers the access needed to insert their own DSP algorithms into a calibrated stream of I/Q data.

FREQUENCY
• Range: 100 kHz to 43.5 GHz
• RF Input Impedance (2.4mm connector): 50Ω
• Calibrated Streaming I/Q: 5 kHz to 40 MHz of selectable I/Q bandwidth
• Includes an internal GPS, used for timebase synchronization, I/Q timestamping, and GPS positioning
• Resolution Bandwidths (RBW): 0.1 Hz (≤200kHz span) to 3 MHz (any span) using 40 MHz IBW; 30 kHz to 10 MHz using 160 MHz IBW
• Timebase Accuracy: GPS disciplined OCXO remains within ±5 x 10-10 when locked to GPS
– holdover of ±5 x 10-9 /day for aging (±2 x 10-8 first day typ)
– holdover of ±1 x 10-8 for temperature over -40°C to 65°C

SYSTEM NOISE FIGURE (typical)
12dB from 700 MHz to 2.5 GHz;
15dB from 2.5 GHz to 24 GHz;
18dB + 0.5dB/GHz from 24 GHz to 40 GHz;
26dB + 2.0dB/GHz from 40 GHz to 43.5 GHz;

IP2
+75dBm from 100 kHz to 20 GHz
+50dBm from 20 GHz to 24 GHz
+70dBm from 24 GHz to 43.5 GHz

IP3
+28dBm from 100 kHz to 4 GHz;
+23dBm from 4 GHz to 6 GHz;
+20dBm from 6 GHz to 43.5 GHz

…get ALL the details in the data sheet: SM435B Data Sheet

Reviews

There are no reviews yet.

Be the first to review “SM435B — 43.5 GHz Real-time Spectrum Analyzer”

Your email address will not be published.

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Device dimensions

Version

SM435B — 43.5 GHz Real-time Spectrum Analyzer - Standard, Temperature Range: 0°C to +50°C - $22,000

Weight7.77 lbs (3.52 kg)
Dimensions10.2" x 7.2" x 2.15" (25.9 x 18.3 x 5.5 cm)
Version

SM435B — 43.5 GHz Real-time Spectrum Analyzer - Option 1, Temperature Range: -40°C to +65°C - $23,641

Weight9.13 lbs. (4.14 kg)
Dimensions10.2” x 7.2” x 2.80” (25.9 x 18.3 x 7.11 cm)

Product-in-packaging dimensions

Version

SM435B — 43.5 GHz Real-time Spectrum Analyzer - Standard, Temperature Range: 0°C to +50°C - $22,000

Weight12.50 lbs. (5.67 kg)
Dimensions16.5" x 11" x 8.44" (41.9 x 27.9 x 21.44 cm)
Version

SM435B — 43.5 GHz Real-time Spectrum Analyzer - Option 1, Temperature Range: -40°C to +65°C - $23,641

Weight13.66 lbs (6.20 kg)
Dimensions16.5" x 11" x 8.44" (41.9 x 27.9 x 21.44 cm)

Software and Drivers

Spike Software

  • Spectrum analysis software for all Signal Hound spectrum analyzers.
  • Installs the necessary USB drivers for the SM200 and SM435 devices.

Signal Hound Software Development Kit

  • Includes programming interface for SM200 and SM435 devices.
  • Low level direct device control and measurements.
  • 64/32-bit Windows and 64-bit Linux operating systems.

Manuals

All manuals are included with the Spike software installer. For direct manual links see below.

SM200 and SM435 Product Manual

10GbE Network Configuration Guide

Firmware

Firmware updater for all models of the SM200 and SM435. You can see the current firmware version of your device in the Spike status bar.

Read the release_notes before updating the firmware on your device.

Firmware Updater (6/9/2022)

STEP File Downloads

3D model files (CAD) of the exterior of the SM200A, B, and C, in the Standard for the Exchange of Product Data (STEP) format. Perfect for those needing the physical specs of the SM200-series devices for system integration purposes.

SM200C STEP Files

SM200A/B STEP Files
