All Signal Hound devices are calibrated to better-than-box specs during production. However, if you require a signed calibration certificate with a printed packet of calibration data, you will need to select it below:

Our standard warranty is for a 2-year time period. An extended warranty is available up to a total of five years (2-year warranty plus 3 additional years). Extended warranties are calculated at 6% of the product cost, per year.

Reviews

There are no reviews yet.

Be the first to review “BB60D — 6 GHz Real-time Spectrum Analyzer”

Your email address will not be published.

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Device dimensions

Version

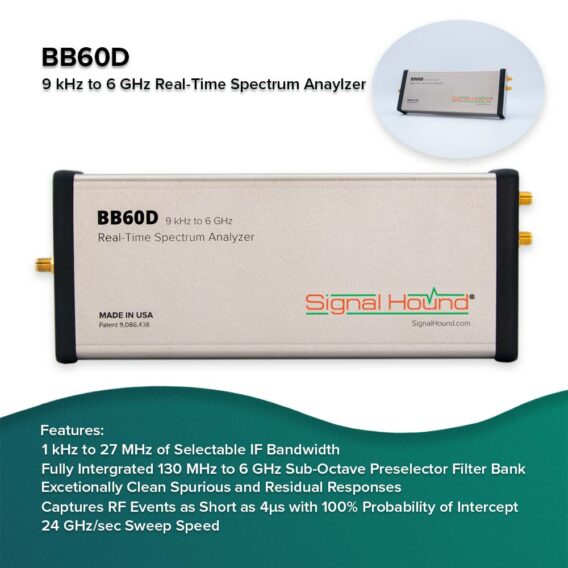

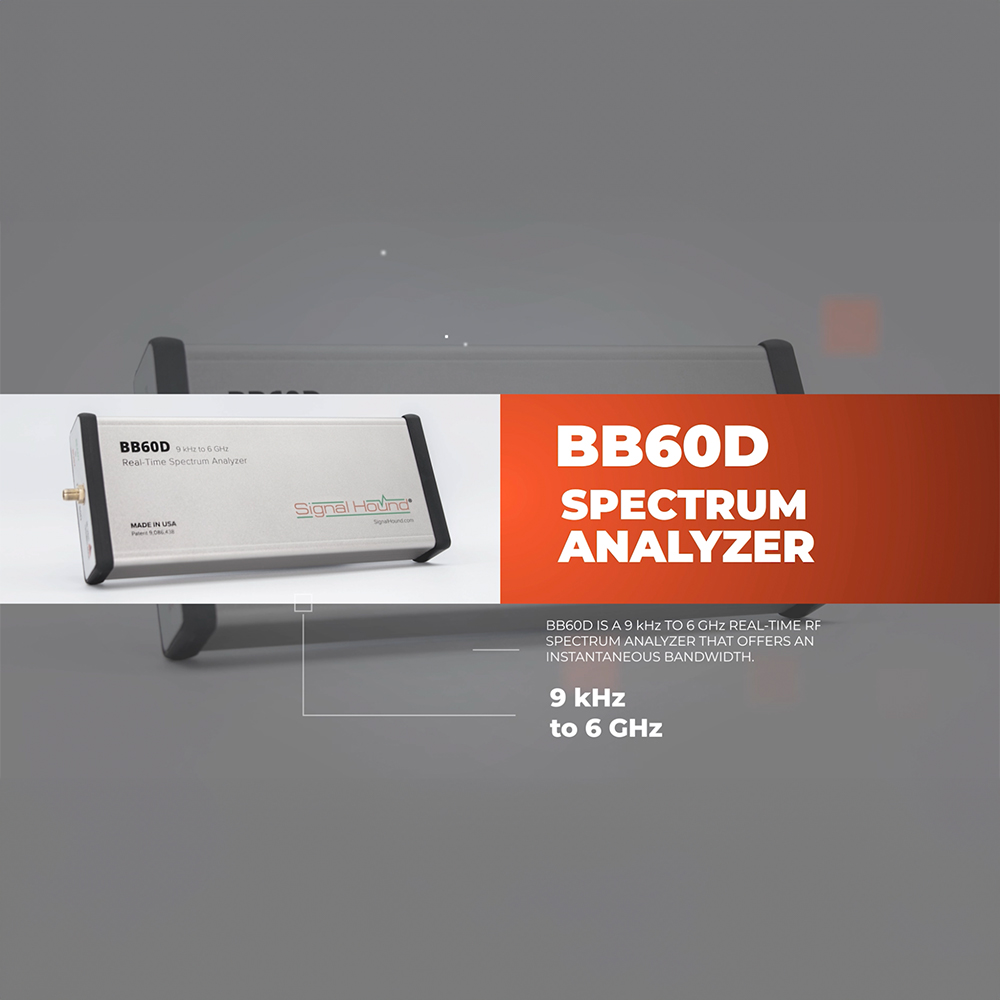

BB60D — 6 GHz Real-time Spectrum Analyzer - Standard, Temperature Range: 0°C to +65°C - $4,250

Weight1.10 lb (.5 kg)
Dimensions8.63" x 3.19" x 1.19" (21.9 x 8.1 x 3 cm)
Version

BB60D — 6 GHz Real-time Spectrum Analyzer - Option 1, Temperature Range: -40°C to +65°C - $4,525

Weight1.10 lb (.5 kg)
Dimensions8.63" x 3.19" x 1.19" (21.9 x 8.1 x 3 cm)

Product-in-packaging dimensions

Version

BB60D — 6 GHz Real-time Spectrum Analyzer - Standard, Temperature Range: 0°C to +65°C - $4,250

Weight1.84 lb (.83 kg)
Dimensions10.25" x 5.44" x 3.13" (26.04 x 13.8 x 7.95 cm)
Version

BB60D — 6 GHz Real-time Spectrum Analyzer - Option 1, Temperature Range: -40°C to +65°C - $4,525

Weight1.84 lb (.83 kg)
Dimensions10.25" x 5.44" x 3.13" (26.04 x 13.8 x 7.95 cm)

Software and Drivers

Spike Software

  • Spectrum analysis software for all Signal Hound spectrum analyzers.
  • Includes the USB device drivers for the BB60C, BB60D, and BB60A.

Signal Hound Software Development Kit

  • Read API Docs
  • Programming interface for BB60C, BB60D, and BB60A devices.
  • Low level direct device control and measurements.
  • 64/32-bit Windows and 64-bit Linux operating systems.

Product Manuals

All manuals are included with the Spike software installer. For direct manual links see below.

BB60C Product Manual

Application Notes

Build Applications Tailored for Remote Signal Monitoring with the Signal Hound BB60C

Additional Downloads

BB60C Firmware Updates

  • See the change log for version information. Determine your device’s current firmware version in the Spike software (lower right hand corner in the status bar).
  • Contact Signal Hound if you need functionality provided by a firmware update.

HDSDR Compatibility Files (Updated 11/11/2020)

  • Everything needed to use the HDSDR software with the BB60C/A spectrum analyzer. Includes setup manual, interface files, and source code.

BB60A Software version 1.2.3 – (Updated 4/3/2015)

BB60A Firmware Update Version 5 (Updated 9/29/2015)

  • To run the firmware updater you must install the MS Visual Studio 2008 x86 libraries.
  • Check your firmware version in the lower right corner of Spike.
  • Version 5 – 9/29/2015: Adds support for TG44 and TG124 to perform scalar network analysis. Requires Spike Version 3.0.15 to take advantage of this functionality.
  • Version 4 – 9/13/2013: The device no longer needs to be power cycled after restarting the PC.

BB60C/A Demo Programs (Updated 6/15/2015)

  • Uses legacy BB60 API.
  • Two applications which demonstrate streaming IF/IQ from the API.
  • VS 2008 / MFC / C++ applications,  open source, with simple recording functionality.
  • Requires an active BB60 software installation.

BB60C/A client/server demo application (Updated 4/3/2015)

  • Uses legacy BB60 API.
  • Open source client/server demo utilizing the BB60 API for remote operation.
