Product description
This PN400 Accessory Kit is ideal for connecting your SM435 spectrum analyzer to your PN400 for performing phase noise measurements.

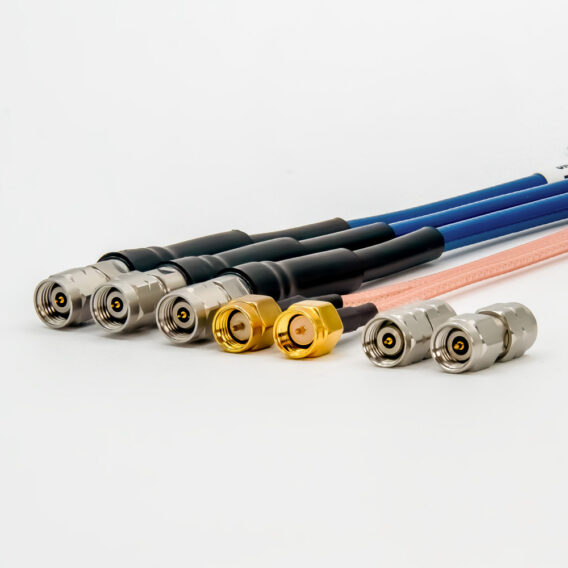

Included in this kit are:

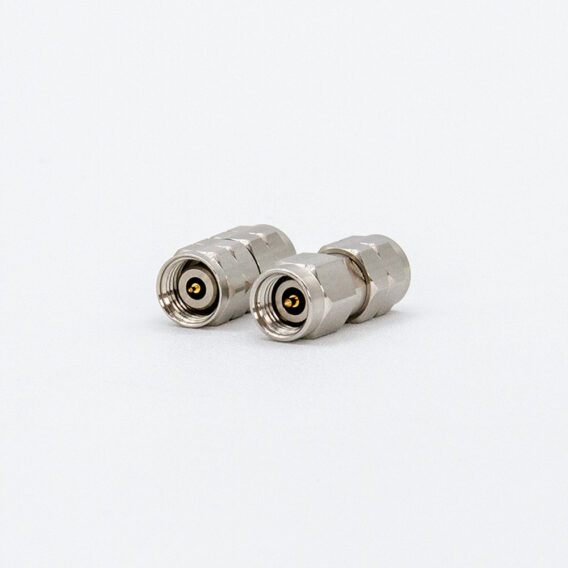

- (Qty. 1) RF Adapter Straight 2.4mm Male to 2.4mm Male DC – 50GHz 50Ω
- (Qty. 1) RF Adapter Straight 2.92mm Male to 2.4mm Male DC – 40GHz 50Ω

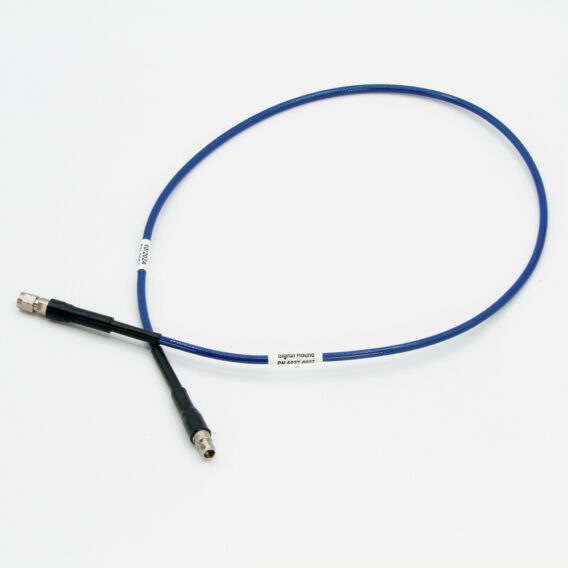

- (Qty. 3) 50 GHz RF cable, 24″, 2.4mm Male-to-Female

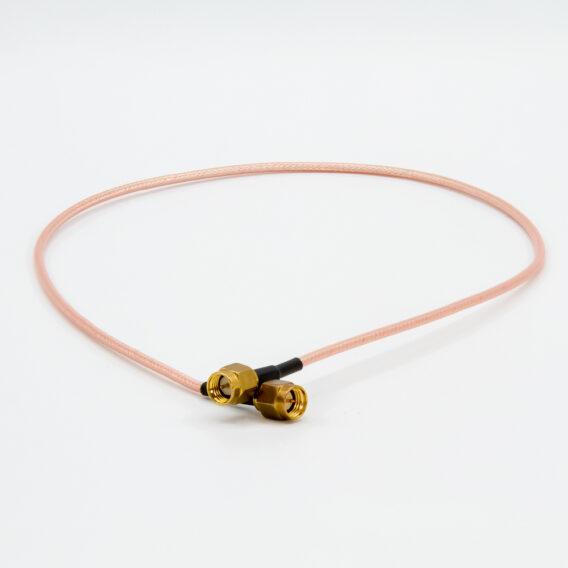

- (Qty. 2) Trigger cable, SMA Straight Plug to SMA Straight Plug RG-316 50 Ohm 750 mm
The 2.4mm and 2.92mm adapters are included for connecting to your device under test.
Product information
RF Adapters
Download the 2.4mm-2.4mm adapter data sheet
Download the 2.92mm-2.4mm adapter data sheet
50 GHz RF cables
| Feature | Specification |
|---|---|
| Operating Frequency (GHz) | 50 |
| Jacket | Blue PUR |
| Typical VSWR | 1.35 |
| Impedance (Ω) | 50 |
| Insertion Loss (dB/m) | 4.30@40GHz, 4.90@50GHz |
| Typical Mechanical Phase (°) – DC-18GHz | ±3 |
| Typical Mechanical Phase (°) – DC-50GHz | ±8 |
| Typical Mechanical Amplitude (dB) – DC-18GHz | ±0.02 |
| Typical Mechanical Amplitude (dB) – DC-50GHz | ±0.06 |
| Shielding Effectiveness (dB) | >90 |
| Velocity of Propagation | 74% |
