6 GHZ Scalar Network Analyzer w/ Coupler for RL

Sale!

6 GHZ Scalar Network Analyzer w/ Coupler for RL

$4,374.00$4,574.00 $4,251.66$4,445.66

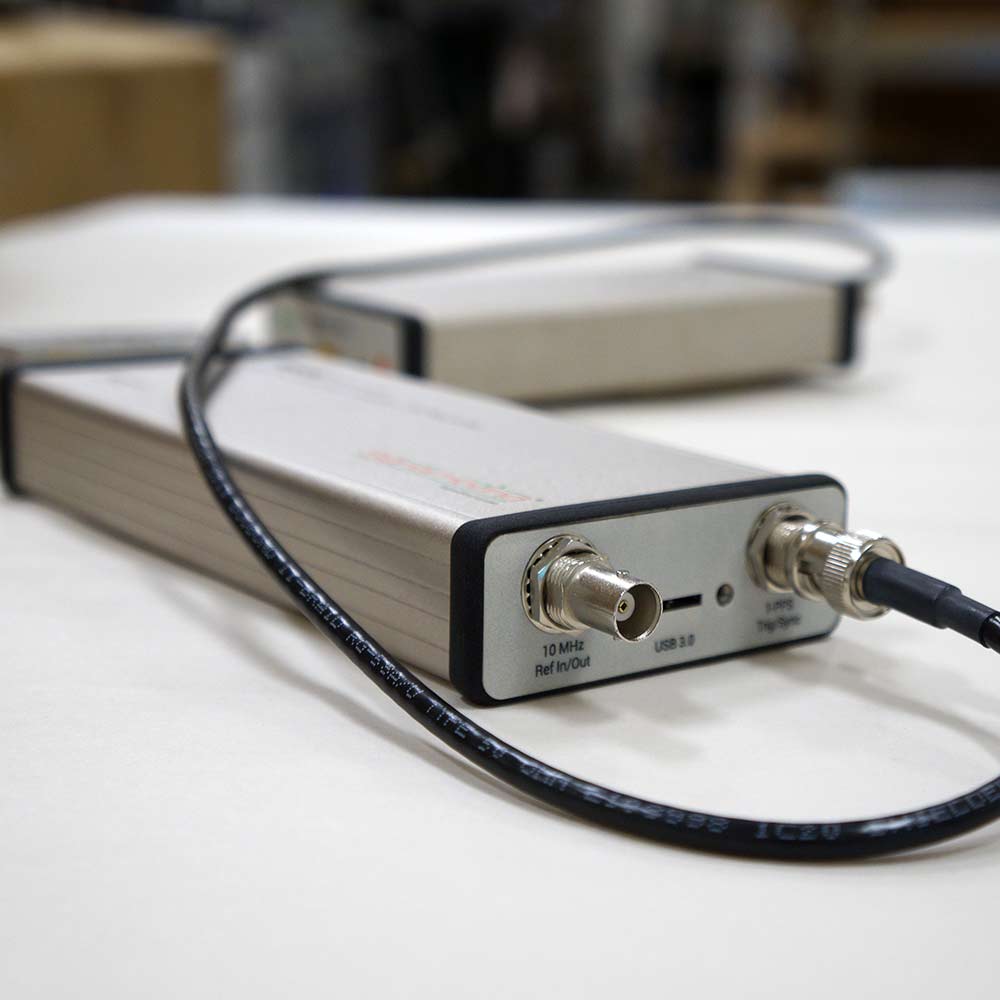

This combo includes a 6 GHz spectrum analyzer, a 12.4 GHz tracking generator, and a 6 GHz directional coupler. By connecting these devices together (with the included cables) the system functions as a scalar network analyzer, providing the tools you need to perform insertion loss and return loss measurements at frequencies up to 6 GHz.

The following products are included in this combo:

BB60C — 6 GHz Real-time Spectrum Analyzer

The Signal Hound BB60C Real-Time RF Spectrum Analyzer and Recorder is a 9 kHz to 6 GHz Spectrum Analyzer and RF Recorder with a instantaneous bandwidth of 27 MHz, and sweep speeds of 24 GHz/sec.

USB-TG124A Tracking Generator

The Signal Hound USB-TG124A is a 100 kHz to 12.4 GHz tracking generator which works with your USB-SA124A to measure filters, attenuators, amplifiers and more!

$1,199.00 $1,163.03

Item is in stock

Directional Coupler — 6 GHz - ZHDC-16-63+

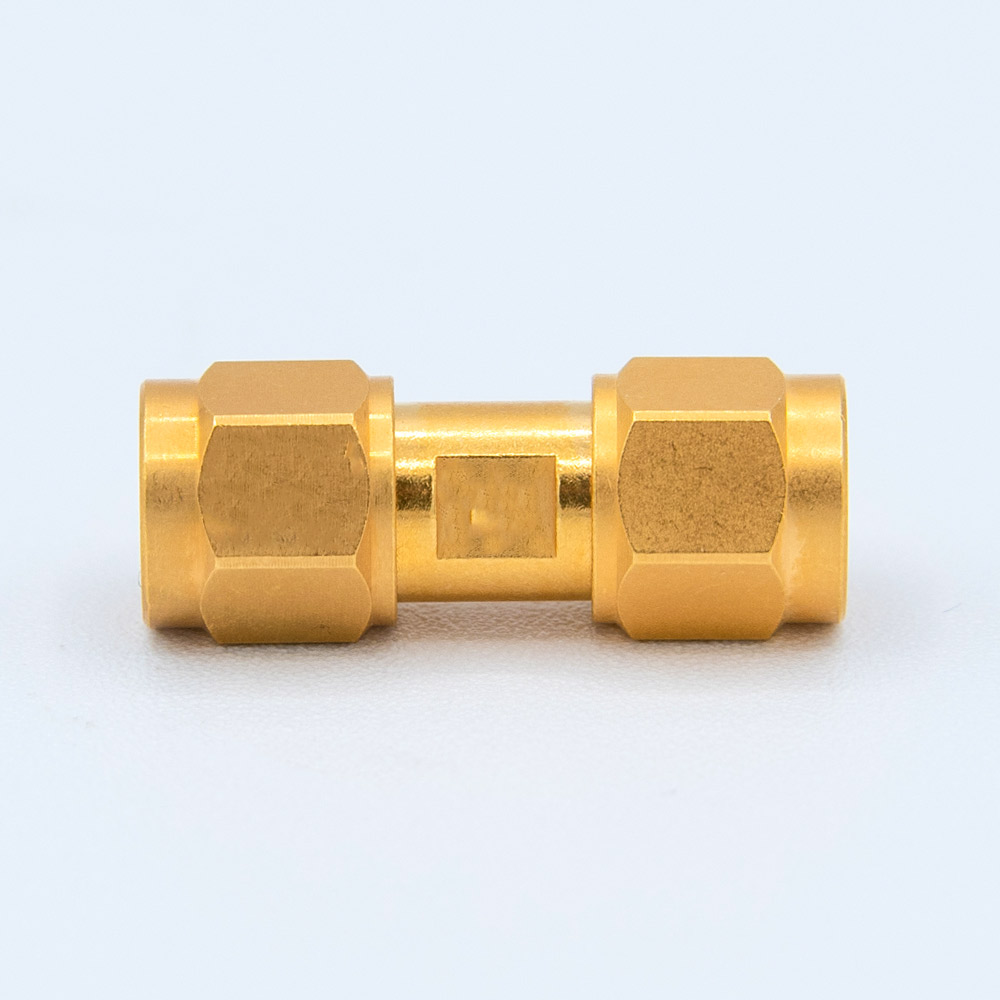

6 GHz directional coupler. Includes (1) 18GHz 1.18max SWR SMA adapter.

$296.00

Item is in stock

Item is in stock

SKU: SNA60RL. Product category is .

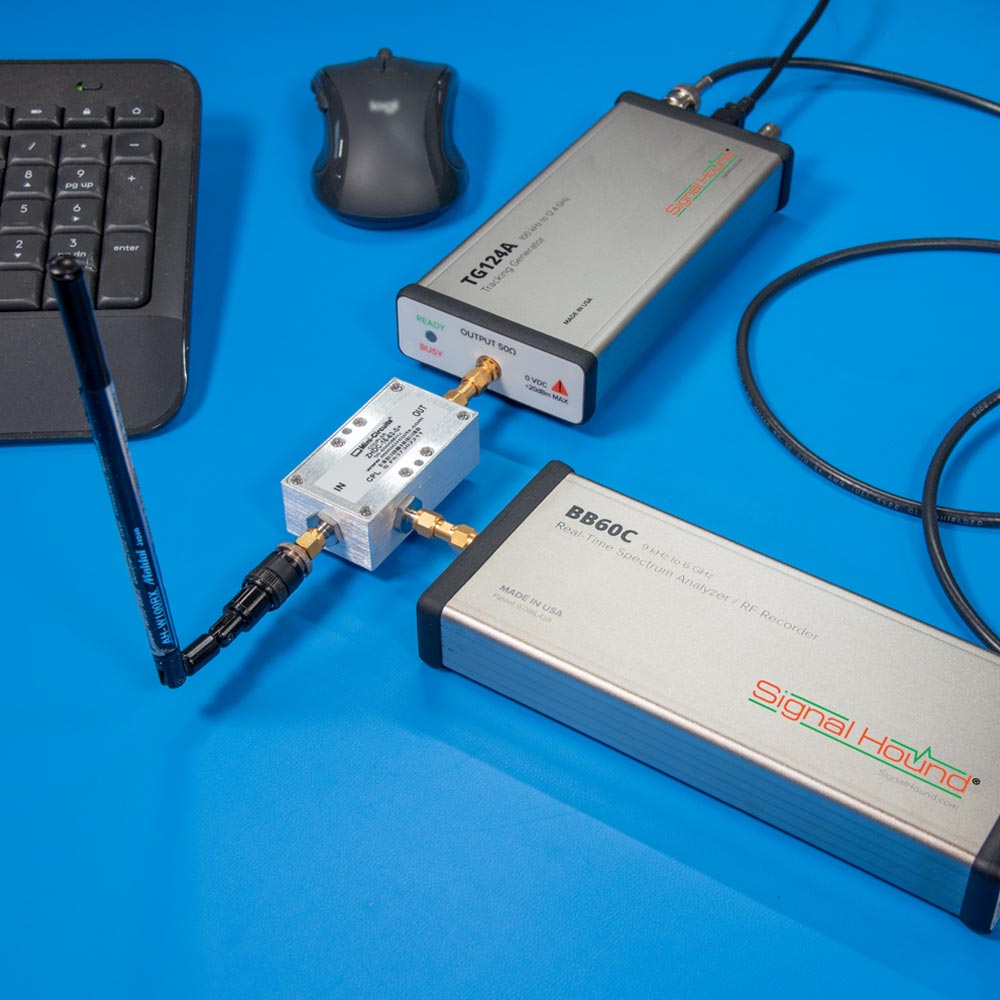

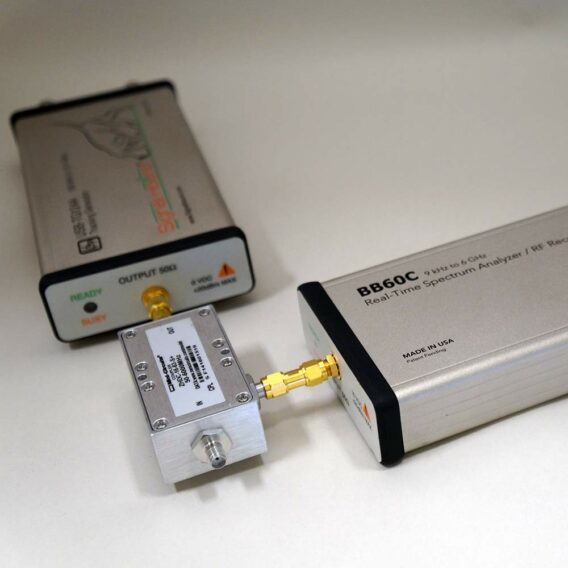

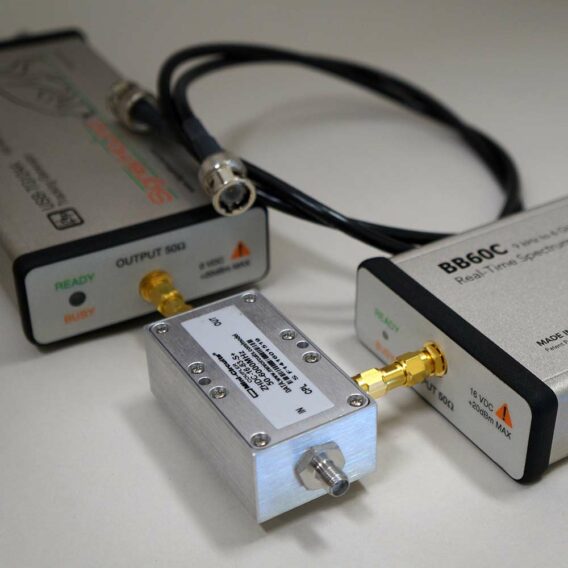

Create your own affordable, high-powered 6 GHz scalar network analyzer (SNA) for measuring insertion loss and return loss by combining two popular Signal Hound products, the BB60C 6 GHz spectrum analyzer, and the USB-TG124A tracking generator, with a 6 GHz directional coupler. This product includes (1) Signal Hound BB60C spectrum analyzer, (1) Signal Hound USB-SA124A tracking generator, and (1) 6 GHz ZHDC-16-63+ directional coupler.

To learn more about scalar network analysis and how our devices work with Spike, our spectrum analysis software, watch this video:

Device dimensions

Device dimensions are coming soon.

Product-in-packaging dimensions

No in-packaging dimensions available.
