4.4 GHZ Scalar Network Analyzer w/ Coupler for RL

Sale!

4.4 GHZ Scalar Network Analyzer w/ Coupler for RL

$1,814.00$2,014.00 $1,768.46$1,962.46

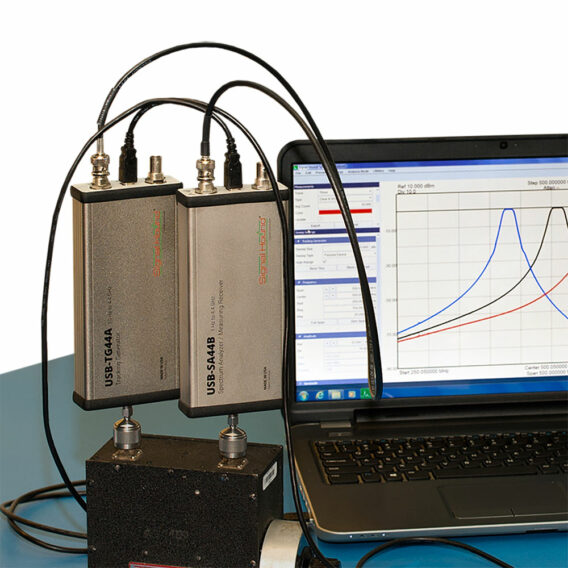

This combo includes a 4.4 GHz spectrum analyzer, a 4.4 GHz tracking generator, and a 6 GHz directional coupler. By connecting these devices together (with the included cables) the system functions as a scalar network analyzer, providing the tools you need to perform insertion and return loss measurements at frequencies up the 4.4 GHz.

The following products are included in this combo:

USB-SA44B — 4.4 GHz Spectrum Analyzer

The Signal Hound USB-SA44B is a Software Defined Receiver (SDR) optimized as a narrow-band real-time RF spectrum analyzer. It is compact, simple to use, and an effective troubleshooting tool for general lab use, engineering students, ham radio enthusiasts, and electronics hobbyists.

All Signal Hound devices are calibrated to better-than-box specs during production. However, if you require a signed calibration certificate with a printed packet of calibration data, you will need to select it below:

Our standard warranty is for a 2-year time period. An extended warranty is available up to a total of five years (2-year warranty plus 3 additional years). Extended warranties are calculated at 6% of the product cost, per year.

USB-TG44A Tracking Generator

The Signal Hound USB-TG44A is a 10 Hz to 4.4 GHz tracking generator which works with your USB-SA44(B) to measure filters, attenuators, amplifiers and more!

$599.00 $581.03

Item is in stock

All Signal Hound devices are calibrated to better-than-box specs during production. However, if you require a signed calibration certificate with a printed packet of calibration data, you will need to select it below:

Our standard warranty is for a 2-year time period. An extended warranty is available up to a total of five years (2-year warranty plus 3 additional years). Extended warranties are calculated at 6% of the product cost, per year.

Directional Coupler — 6 GHz - ZHDC-16-63+

6 GHz directional coupler. Includes (1) 18GHz 1.18max SWR SMA adapter.

$296.00

Item is in stock

Item is in stock

SKU: SNA44RL. Product category is .

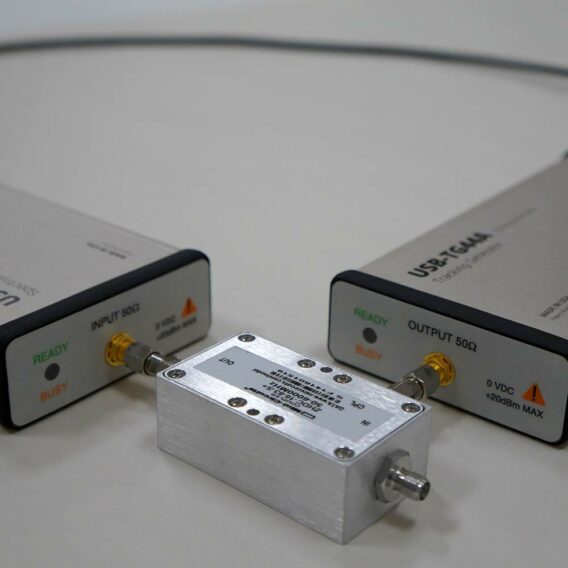

Create your own affordable, high-powered 4.4 GHz scalar network analyzer (SNA) for measuring insertion loss and return loss by combining two popular Signal Hound products, the USB-SA44B 4.4 GHz spectrum analyzer, and the USB-TG44A tracking generator, with a 6 GHz directional coupler. This product includes (1) Signal Hound USB-SA44B spectrum analyzer, (1) Signal Hound USB-TG44A tracking generator, and (1) 6 GHz ZHDC-16-63+ directional coupler.

Note: Filter and PC/laptop are not included.

To learn more about scalar network analysis and how our devices work with Spike, our spectrum analysis software, watch this video:

Related Documents

USB-SA44B & TG44A Review in QST Magazine, Feb 2016

Device dimensions

Device dimensions are coming soon.

Product-in-packaging dimensions

No in-packaging dimensions available.
