When it comes to testing and tuning RF components, Vector Network Analyzers (VNAs) are indispensable. They’re the key to understanding how signals behave across transmission lines, antennas, filters, and other components. Whether you’re refining an antenna’s impedance match or optimizing a filter’s passband, a VNA gives you the full picture—both magnitude and phase.

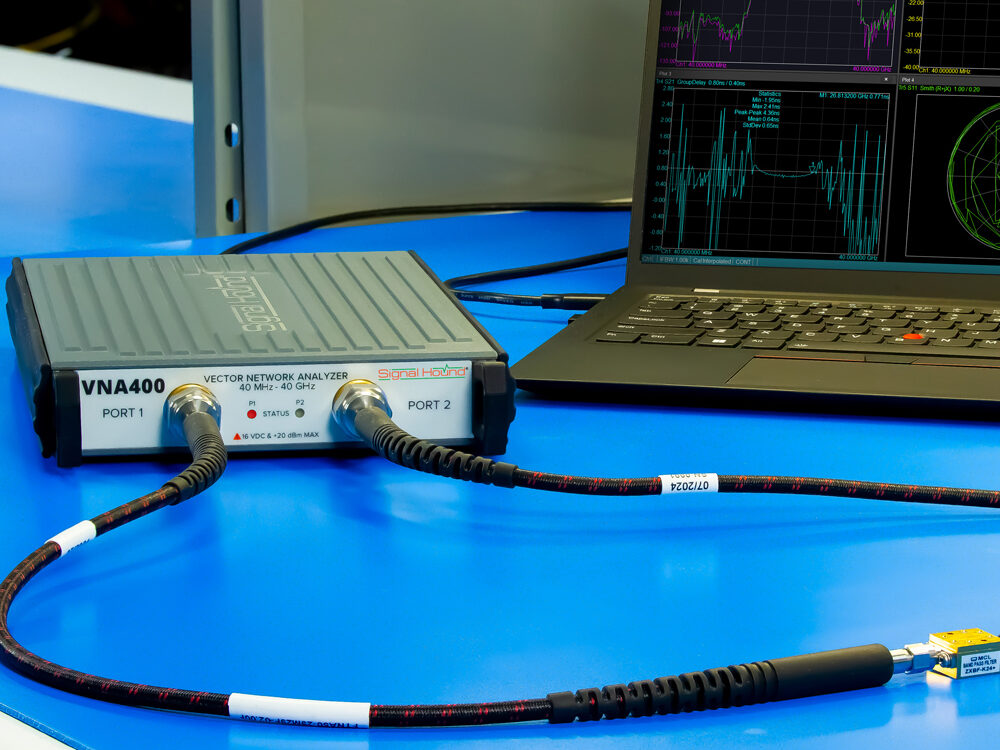

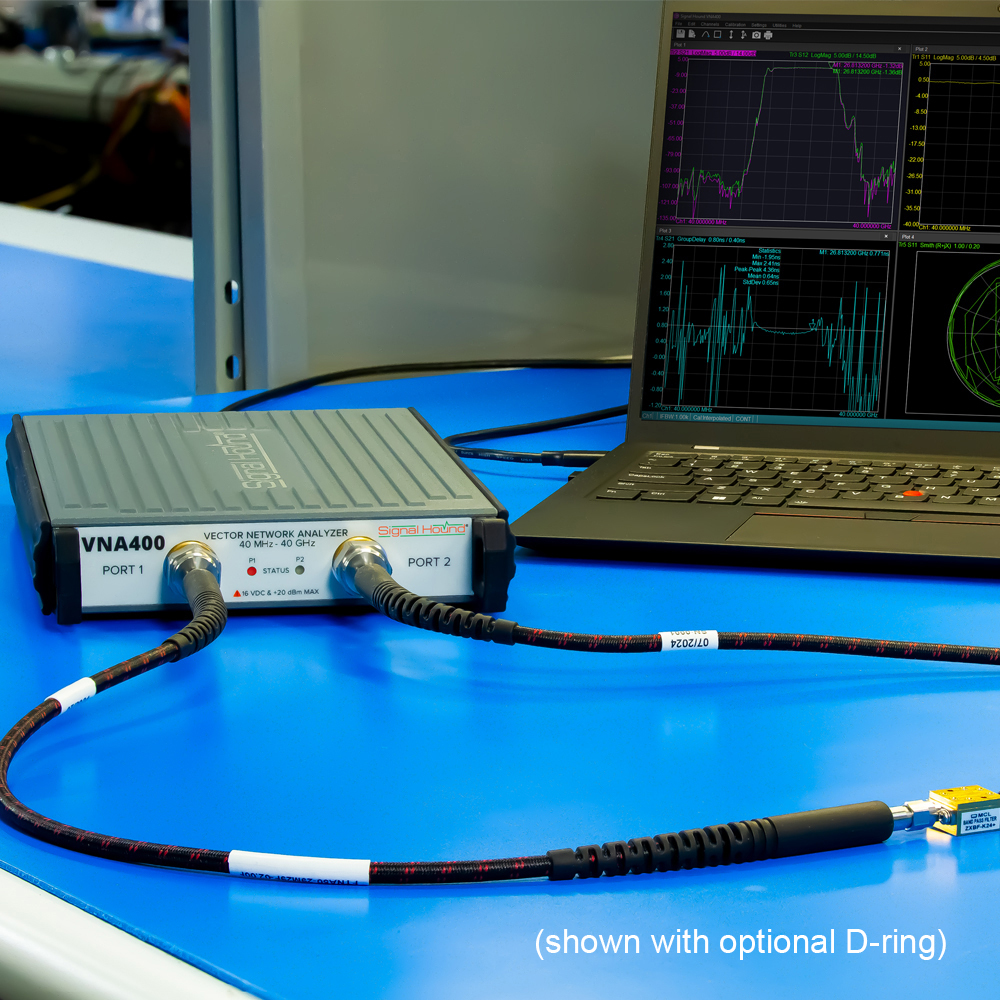

At Signal Hound, we believe powerful RF test equipment shouldn’t require a forklift or a fortune. Our compact, USB-powered VNAs deliver pro-grade performance without the bulk, cost, or complexity of legacy bench instruments.
What is a Vector Network Analyzer?
A Vector Network Analyzer (VNA) is more than just a signal tester – it measures the amplitude and phase response of RF and microwave components over a range of frequencies. It generates known signals, sends them through a device under test (DUT), and precisely measures how they reflect and transmit.
Unlike basic scalar analyzers that only measure amplitude, VNAs capture both magnitude and phase—essential for analyzing impedance mismatches, signal loss, and propagation characteristics.
What Can a VNA Do for You?
Here’s what makes a VNA an everyday essential in the RF lab or field:

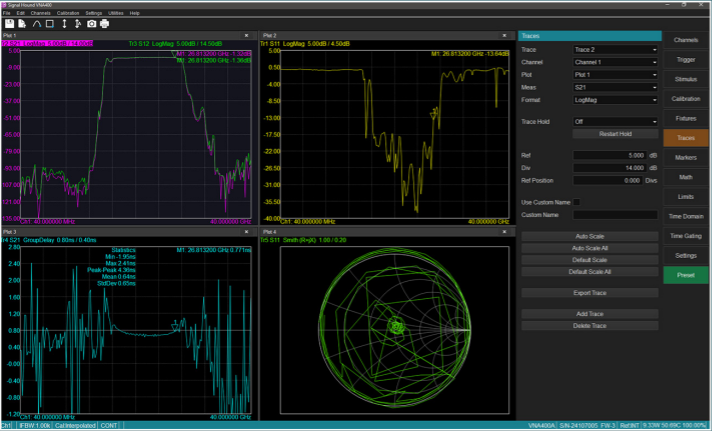

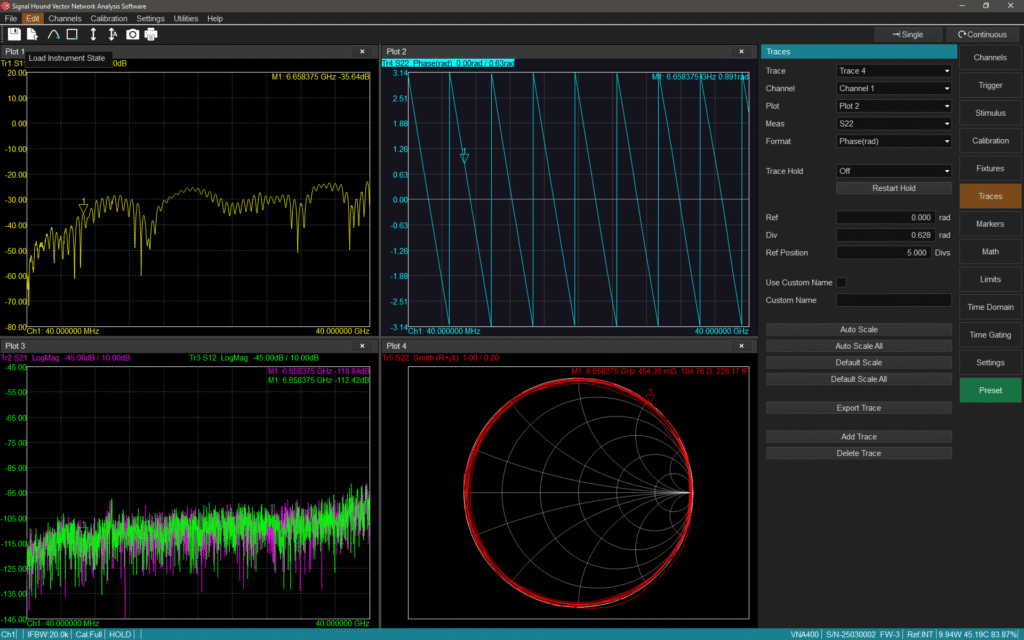

- S-Parameter Analysis (S11, S21, S12, S22): Get complete insight into how your DUT reflects and transmits signals.
- Impedance Matching: Visualize return loss and optimize power transfer across your design.
- Antenna & Filter Tuning: Zoom into performance across frequency bands—quickly and accurately.
- Cable & Connector Checks: Spot degradation, mismatches, or losses in your transmission path.

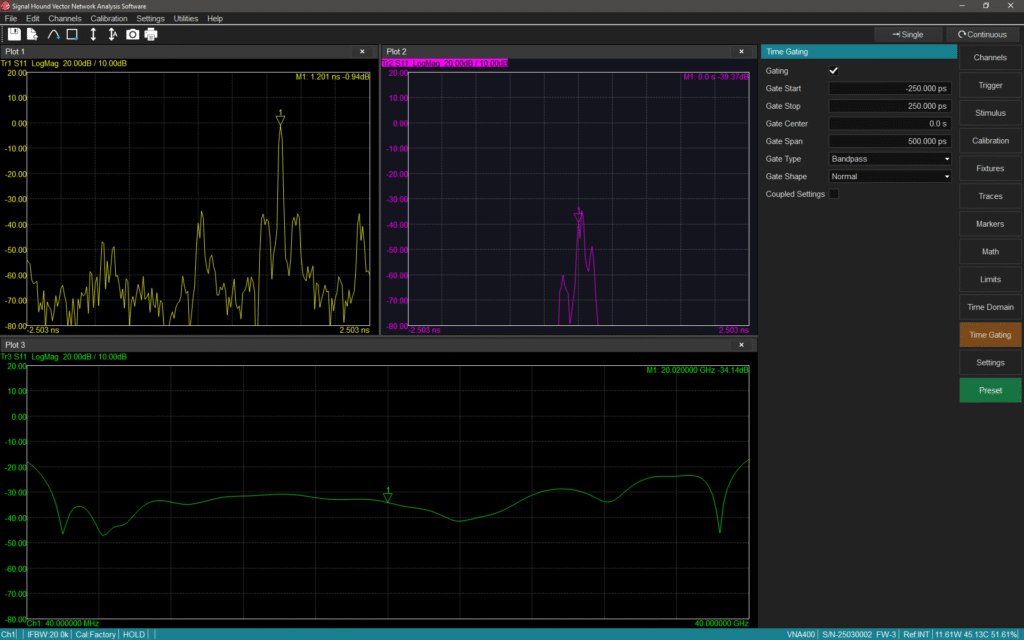

- Software-Driven Precision: With Signal Hound, your PC does the heavy lifting—lightweight hardware, full-featured analysis, no trade-offs.
How a VNA Measures What Matters
At its core, a Vector Network Analyzer operates by sending a known RF signal through your device and analyzing how that signal is reflected or transmitted. Here’s how it works:
RF Source
Generates a swept-frequency signal across the desired test range.
Directional Couplers
Separate incident, reflected, and transmitted signals for precise measurement.
Receivers
Accurately capture both amplitude and phase of the signal at each frequency point
Calibration Engine
Compensates for system imperfections—cables, connectors, and measurement paths—so you can trust your results.
Easy, Accurate Calibration
Calibration doesn’t need to be a chore. Signal Hound supports the following methods:
- SOLT (Short-Open-Load-Through): Classic coax calibration.
- TRL (Thru-Reflect-Line): Perfect for on-PCB or waveguide calibration.
Why Choose Signal Hound VNAs?
We’re not trying to be another Keysight, R&S, or Anritsu. We’re building a better experience:
- High-end accuracy without high-end pricing
- Compact, rugged form factor—ideal for field work or crowded benches
- Modern, user-focused software that doesn’t require hours of training
- No bloatware, no licensing headaches, no upsell gimmicks
- Seamless automation & scripting for test integration
Whether you’re a seasoned RF pro or just getting started, our VNAs give you the insights you need—without the overhead you don’t.
A Vector Network Analyzer is the RF engineer’s go-to for validating and debugging everything from antennas to filters. But not all VNAs are created equal. Signal Hound offers performance that rivals legacy brands—without their size, price tag, or complexity.
