160 MHz Segmented I/Q Capture with the SM200B and SM435B

Signal Hound’s SM200B and SM435B spectrum analyzers offer segmented I/Q streaming. This feature allows the devices to capture data at a full 160 MHz IBW (in 2-second segments) then stream the data to the PC via USB 3.0 for analysis, overcoming the throughput limitations of the USB 3.0 interface. Combining the SM200B/SM435B’s innovative receiver capabilities with advanced triggering options – such as frequency mask triggering (FMT) – creates an powerful, yet cost-effective, RF measurement system, satisfying the ever-increasing analysis bandwidth demands of the wireless industry.

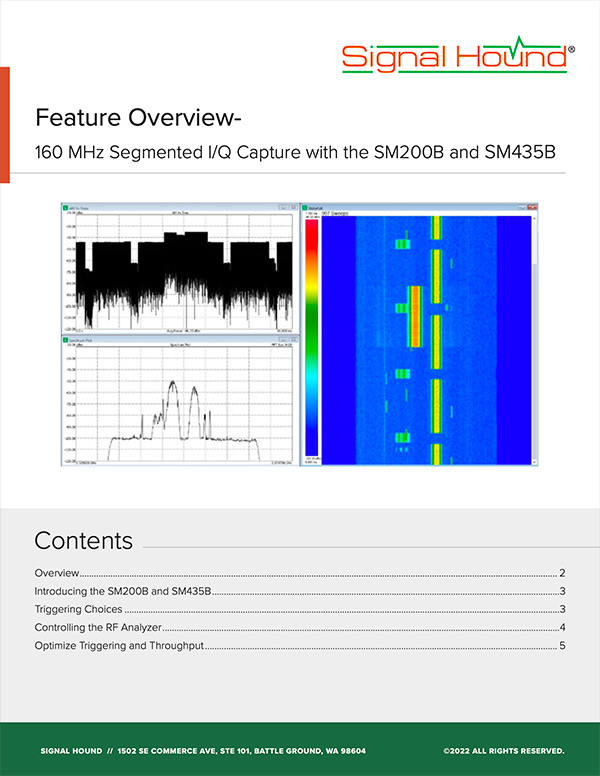

This PDF download details this new feature and its related options regarding triggering and optimization.

Download this Feature Overview

387 KB PDF — No sign in required
